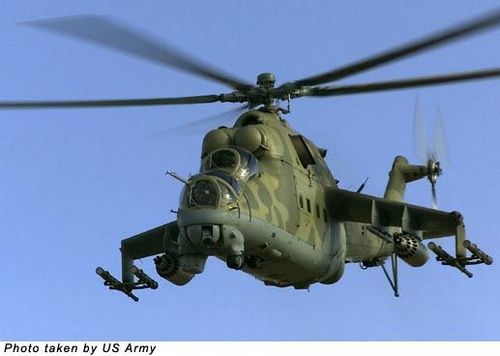

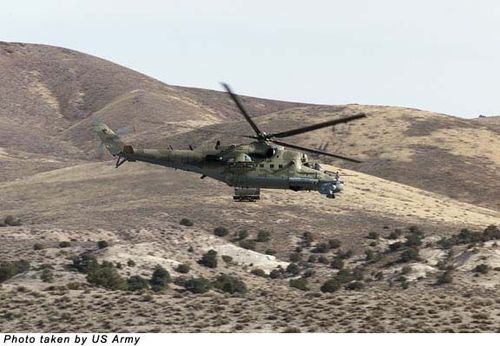

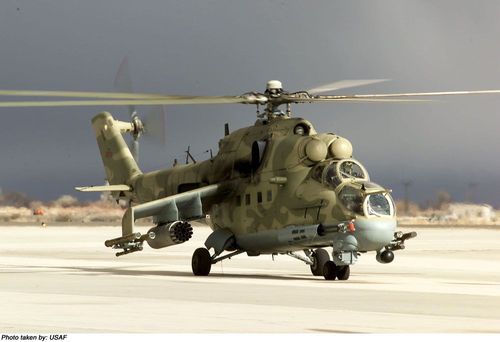

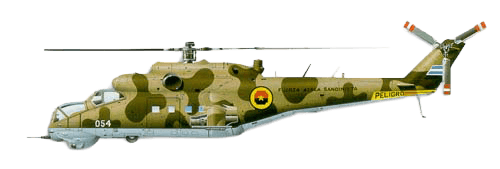

Mil Mi-24 Hind
gunship helicopter, retaining assault transport capability
Specifications
- Origin
- Russia
- Type
- gunship helicopter, retaining assault transport capability
- Maximum Speed
- 180 kt / 208 mph
- Maximum Range
- 160 km / 99 miles
- Dimensions
- main rotor diam. 17.30 m /
56 ft 9 in
length 21.35 m / 70 ft 0.5 in
height 6.50 m / 21 ft 4 in - Weight
- empty 8,200 kg / 18,078 lb
max. take-off 12,000 kg /
26,455 lb - Powerplant
- two 1660-kW (2,225-shp) Isotov TV3-117 turboshafts
Armament
one 12.7 mm (0.5-in) JakB-12.7 machine gun; provision for 2400 kg (5,291 lb) of disposable stores, including bombs, rocket-launcher pads, dispenser weapons, cannon pads, grenade launchers, anti-tank missile, drop tanks and ECM pads, carried on four underwing and two wing tip pylons
