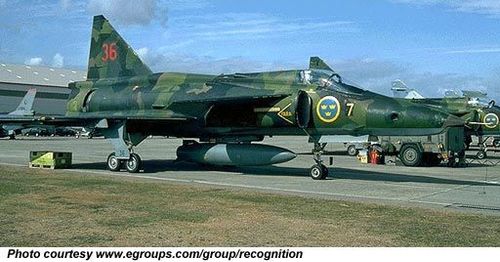

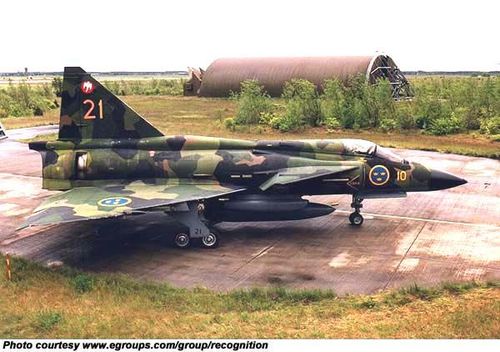

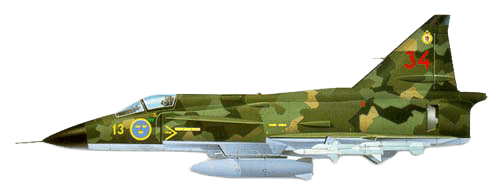

SAAB JA 37 Viggen
single-seat interceptor with secondary attack capability
Specifications
- Origin
- Sweden
- Type
- single-seat interceptor with secondary attack capability
- Maximum Speed
- 1,146 kt / 1,320 mph
- Maximum Range
- 500 km / 311 miles
- Dimensions
- span 10.60 m / 34 ft 9.3 in
length 16.30 m / 53 ft 7.75 in
height 5.90 m / 19 ft 4.3 in - Weight
- normal take-off 15,000 kg / 33,060 lb
max. take-off 20,500 kg /
45,194 lb - Powerplant
- one 12750-kg (28,109-lb) afterburning thrust Volvo Flygmotor RM8B turbofan
Armament
one 30-mm Oerlikon KCA cannon with 150 rounds; provision for 6000 kg (13,228 Ib) of disposable stores, including two Rb71 (BAe Sky Flash) and four Rb74 (AIM9L Sidewinder) AAMs or bombs and/or 135-mm (5.31-in) rocket-launcher pods, carried on six external hardpoints
