Dornier Do 28 Skyservant

Origin
West Germany
Type
eight-seat general-purpose STOL transport
Max Speed
156 kt / 180 mph
Max Range
1,235 km / 768 miles
Dimensions
span 13.80 m / 45 ft 3.5 in length 9.00 m / 29 ft 6 in height 2.80 m / 9 ft 2 in
Weight
empty 1,730 kg / 3,814 lb maximum take-off 2720 kg / 5,996 lb
Powerplant
two 216-kW (290-shp) Avco Lycoming IO-540A flat-six piston engines
Armament
none
Operators:
Cameroon (Do.28 Turbo Skyservant), El Salvador, Greece, Kenya, Malawi, Morocco, Niger, Nigeria (Do.28 Turbo Skyservant), Thailand, Turkey

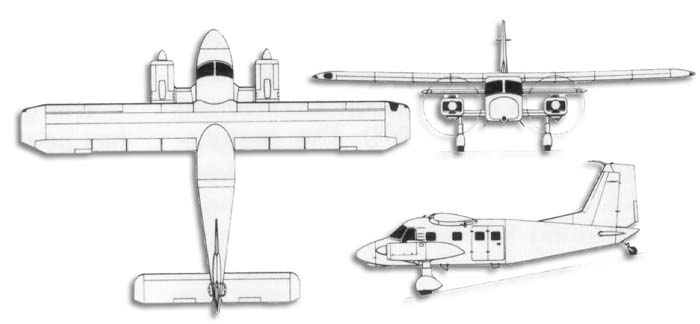

Line Drawing
